At a Glance

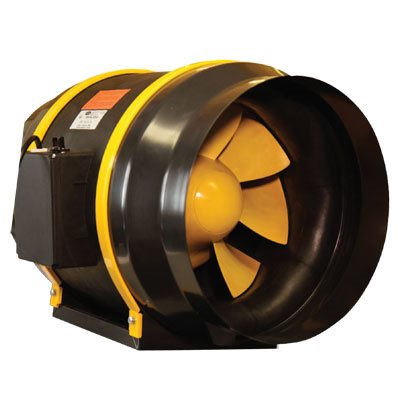

Max-Fan Pro Series fans are the next generation of in line mixed-flow fans capable of even more efficient and stronger performance than the original Max-Fan. Manufactured in Germany the Pro Series of fans has a much more robust housing due to the fiberglass reinforced plastic compounds that meet all of the UL and CSA requirements. Aerodynamically optimized laminar airflow and extremely high efficiency set the Pro series in a class of its own and those seeking the highest quality in professional grade fans know there is only one option for true and reliable performance, Max-Fan.
Details:
- Fiberglass composite housing reduces noise
- ETL Commercial/Industrial-rated
- Manufactured in Germany
- Built-in 3-speed controller
- Optimized mixed flow is extremely energy efficient
- Lower operational cost than traditional centrifugal fans
- EZ Mount bracket included
- 5-year warranty
- Available in 6,” 8,” 10,” and 16″ sizes
Technical Data:
CFM | 1052 0wg* |
RPM | 3093* |
Max Watts | 242* |
Amps | 2.05* |
Weight: | 10.9 lbs |
Length | 8.47″ |
Max. Height | 13.26″ |
Blade Design | Mixed Flow |
Housing | Fiberglass Composite |
Inlet/Outlet | 10″ |
*At High Speed
Recommended Filters:
Exhaust: | Recirculating: |
| Can 100 (speed 1) Can 125 Can 150 | Can 75 Can 100 (speed 2, 3) Can-Lite 10×40 |
